FLIR stands for Forward-Looking Infrared and is a great tool to help detect potential insulation problems and heating/cooling issue. Our FLIR Thermal camera is one of our several tools that we bring to residential and commercial insulation assessments.
FLIR can help us detect these common problems.
- Air Leaks
- Fallen Batt on Knee Walls
- Missing Batt
- Missing Blown-In Insulation
- Insulated Area
- Missing Spray Foam
- Missing Wall Batt
- Missing Wall Radiant Barrier
- and much more.

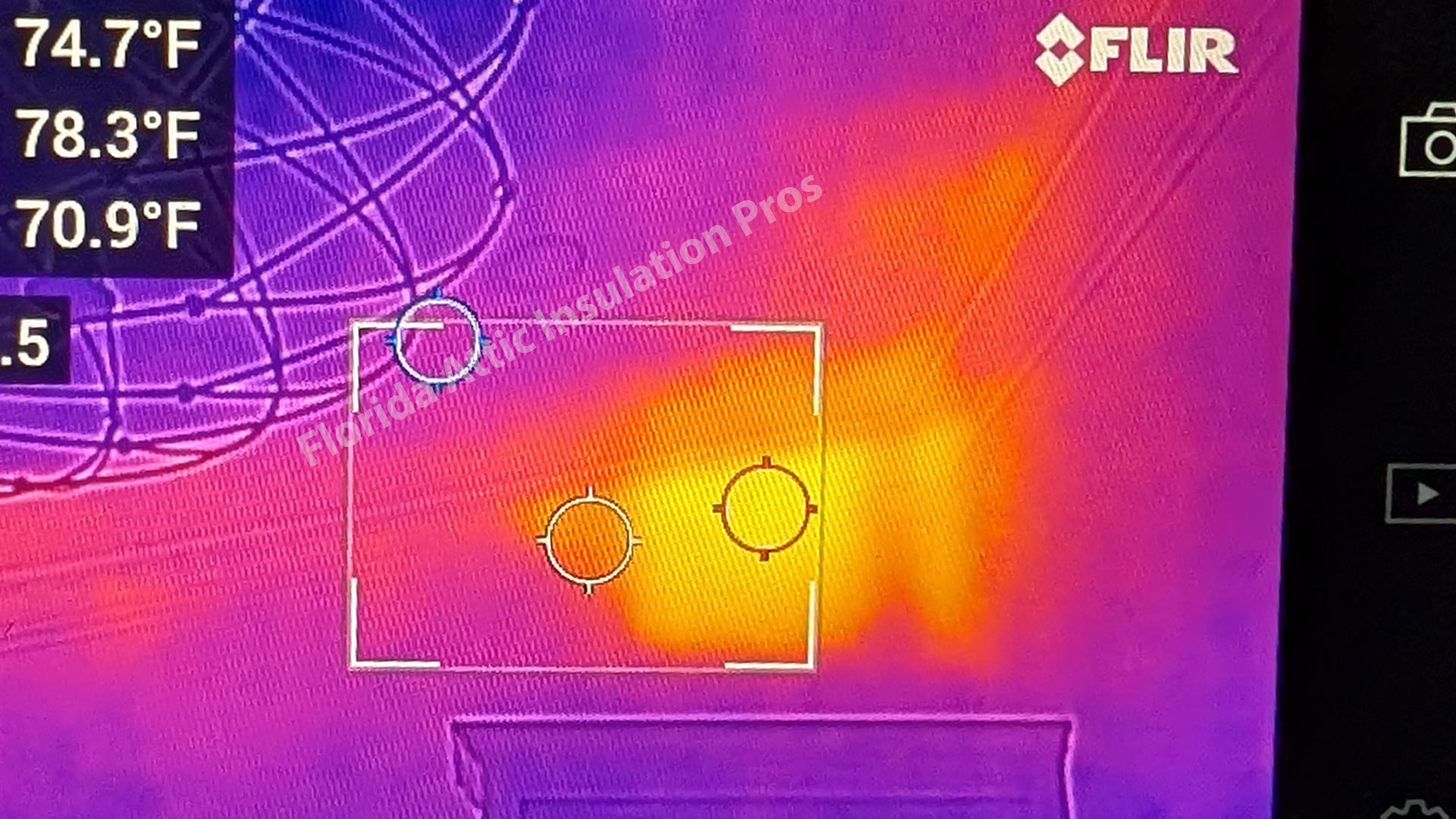

This is a home that we went to where the office inside an Orlando, Florida home where the temperature difference is usually 3F warmer that the rest of the home. Upon inspection, we discovered a few things with the home that needed to be corrected.
The found the following with the help of a FLIR and doing a visual assessment in the home attic.
- Wall batt insulation on a knee wall had fallen down.
- The knee wall did not have thick enough insulation.

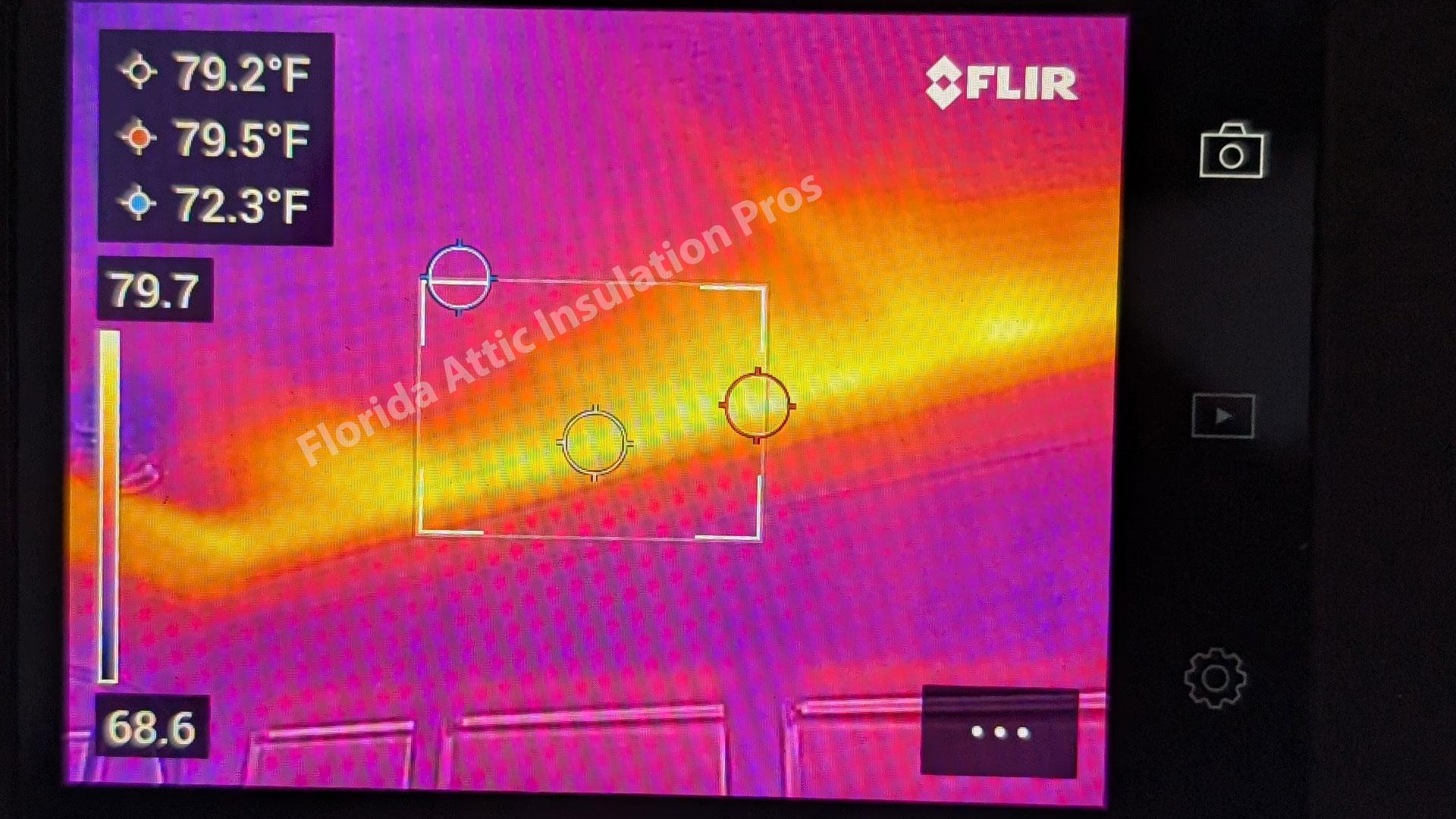

- Missing Baffles on the front edges of the home and the insulation was not thick enough
- One AC duct was bend and twisted and not flowing air correctly.
Location:
Orlando, Florida
Concern:
Office is warmer than the rest of the home.
Cause:
Knee wall batting falling down, low insulation in the entire home, exceptionally low insulation on the front edge of the home, 1 AC duct no flowing correctly.
Correction:
- Replaced all the old knee wall batt with a higher R-Value batt.
- Added 8″ of Owens Corning ProPinkL77a to the entire home.
- Added 8 Baffles to the front of the home.
- Straightened and hung 1 AC duct properly for better air flow.
